DPM2Plus Universal Pressure Meter Tester

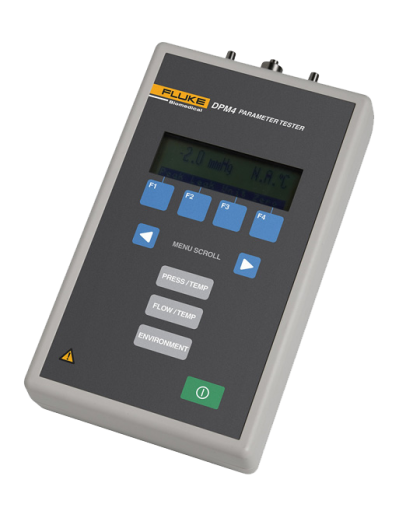

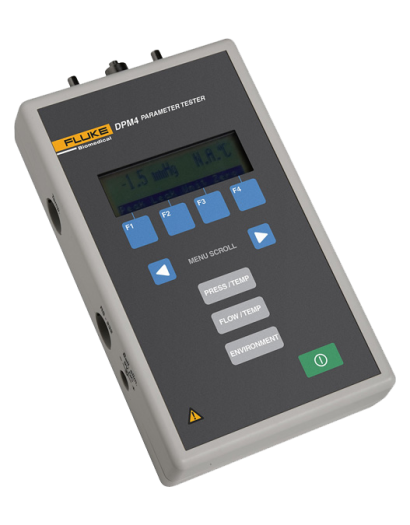

DPM4 Parameter Tester is a highly accurate meter for testing a wide range of medical devices.
The DPM4 is available in four models: 1H, 1G, 2H, and 2G. The DPM4-1G is the replacement for the popular, but now obsolete DPM3. Basic parameters cover pressure, vacuum, and temperature measurements (Models 1H and 1G). Gas flow, barometric pressure and humidity measurements are included in the enhanced Tester (Models 2H and 2G). The Tester is menu-driven and simple to operate. All functions are set from a 128 x 32 pixel graphical display. *not available in Europe.
Key Features
- Palm Size
- High accuracy
- Differential pressure, vacuum, and temperature measurements
- Multiple user-selectable units of measurements
- Simultaneous display of multiple parameter measurements
- Leak detection/leak-rate calculation
- RS232 for computer control
- Pressure measurements from -700 mmHg to +5000 mmHg range (applies to the 1G and 2G models only)
- Barometric-pressure, flow, and humidity measurements (applies to the 2G and 2H models only)
| Model Name | Part Number | Description |
|---|---|---|
| PARAM TESTER,LOW PRESS,TEMP | 2583121 | DPM4 1H Parameter Tester Pressure: ± 350 mmHg (Part #2583121) Includes: User Manual (Part #2572323) Power Cord (country specific) Battery Eliminator (Part #2647372) One 9 Volt Alkaline Battery |
| PARAM TESTER,HI PRESS,TEMP | 2631330 | DPM4 1G Parameter Tester Pressure: -700 to 5000 mmHg (Part #2631330) Includes: User Manual (Part #2572323) Power Cord (country specific) Battery Eliminator (Part #2647372) One 9 Volt Alkaline Battery |
| DPM4-2H | 2637760 | DPM4 2H Parameter Tester Pressure: ±350 mmHg, Press, Temp, Flow, RH (Part #2637760) Includes: User Manual (Part #2572323) Power Cord (country specific) Battery Eliminator (Part #2647372) One 9 Volt Alkaline Battery |
| DPM4-2G | 2637772 | DPM4 2G Parameter Tester Pressure: -700 to 5000 mmHg, Press, Temp, Flow, RH (Part #2637772) Includes: User Manual (Part #2572323) Power Cord (country specific) Battery Eliminator (Part #2647372) One 9 Volt Alkaline Battery |
