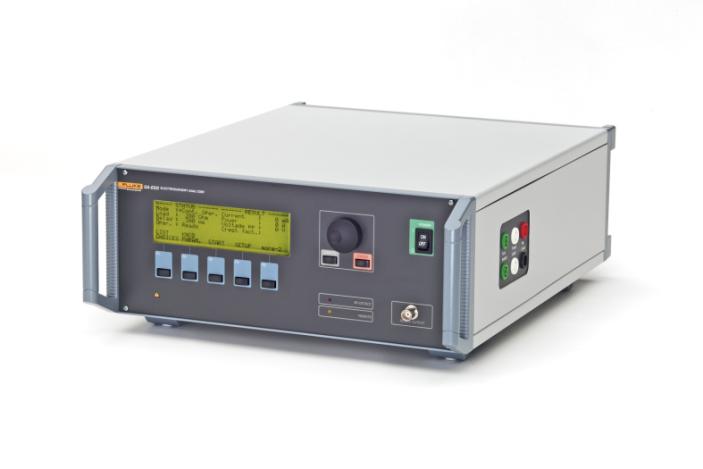

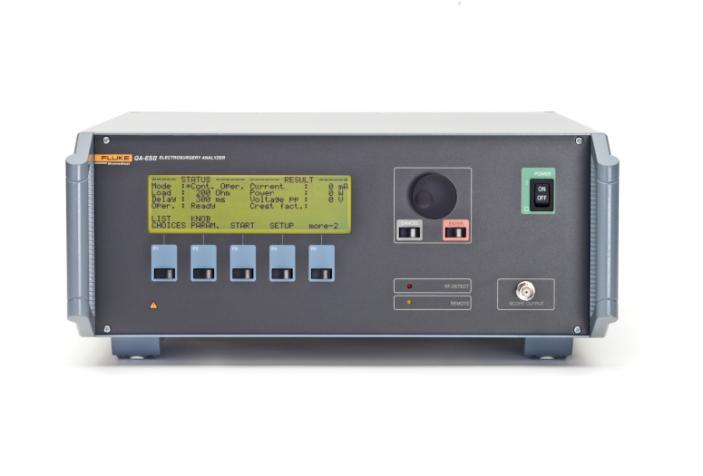

QA-ES II Electrosurgery Analyzer
QA-ES Series II analyzes electrosurgical units quickly and accurately. A wide load-resistance range provides 128 user-selectable loads, including very low loads for testing many of today’s ESUs.An accuracy of ±5 % of reading down to 20 mA guarantees reliable high-frequency leakage results. With capability to run an automatic power- distribution test in as little as 1 minute, the QA-ES II works fast so technicians save time.An Ansur QA-ES software plug-in allows users to create and automatically run tests, capture data, and produce easy-to-read reports with a PC.
This product has been discontinued.
Service and repair is guaranteed until July 01, 2021.
We recommend the QA-ES III Electrosurgery Analyzer in place of this product.
QA-ES II Electrosurgery Analyzer
- Overview
QA-ES II Electrosurgery Analyzer
Key Features
- | Automatic power distribution measurement
- including power
- current
- peak-to-peak voltage closed load only)
- and crest factorOscilloscope outputHigh-frequency leakage measurements with accuracy of ±5 % of reading128 internal user-selectable test loads from 10 \u03a9 to 5200 \u03a9Foot-switch output for triggering the ESU under testAnsur QA-ES software plug-in for automated test protocolsLarge displayRS-232 and Centronic-printer interface “
